A sprinkler hydraulic calculation solves the flow and pressure at every node of the system so that the sprinklers in the most demanding design area can deliver the required density. This guide works through the eight steps — from establishing the hazard class to verifying the water supply and pump — using the orifice equation and the Hazen-Williams friction loss relationship, with worked numbers.
The Logic: From the Critical Point Back to the Source
A hydraulic calculation is a balance solution that starts at the most hydraulically disadvantaged sprinkler and works "backwards" toward the supply main and the pump. The minimum flow for the most remote sprinkler is established, the corresponding head pressure is found, and then node by node the flows are accumulated together with friction, elevation and fitting losses. The result is the total demand point (Q, P) at the system inlet, which is then compared against the capacity of the water supply.
| Step | Output | Relationship used |
|---|---|---|
| 1. Hazard class | LH / OH1-2 / EH1-2 | Occupancy use → classification table |
| 2. Density and area | mm/min and m² | Density/area curve |
| 3. Critical sprinkler | Most remote / highest node | Geometry plus design area |
| 4. Flow and head pressure | Q, P | Sprinkler orifice equation |
| 5. Friction loss | bar/m | Hazen-Williams |
| 6. Elevation and fittings | bar | Static head plus equivalent length |
| 7. Demand point | Total Q, P | Node summation |
| 8. Supply / pump | Adequacy | Demand below supply curve |
Step 1 — Establish the Hazard Class
Every hydraulic calculation begins with correctly establishing the hazard class of the space. NFPA 13 defines Light Hazard, Ordinary Hazard Groups 1 and 2, and Extra Hazard Groups 1 and 2; EN 12845 uses LH, OH1–OH4 and HHP/HHS. An incorrect class invalidates the entire calculation. In the worked example, a moderately loaded manufacturing and storage area is taken as Ordinary Hazard Group 2.
Step 2 — Select the Design Density and Area of Operation
Read the design density (mm/min) and the area of operation (m²) corresponding to the hazard class from the density/area table. A common combination for OH2:
- Design density: 8.15 mm/min (about 0.20 gpm/ft²)
- Design area: 139 m² (1,500 ft²)
- Maximum coverage per sprinkler: 12 m²
These values mean every sprinkler in the design area must deliver at least 8.15 mm/min. The number of sprinklers falling within the design area is therefore roughly 139 divided by 12, or about 12 sprinklers.
Step 3 — Select the Most Remote / Critical Sprinkler

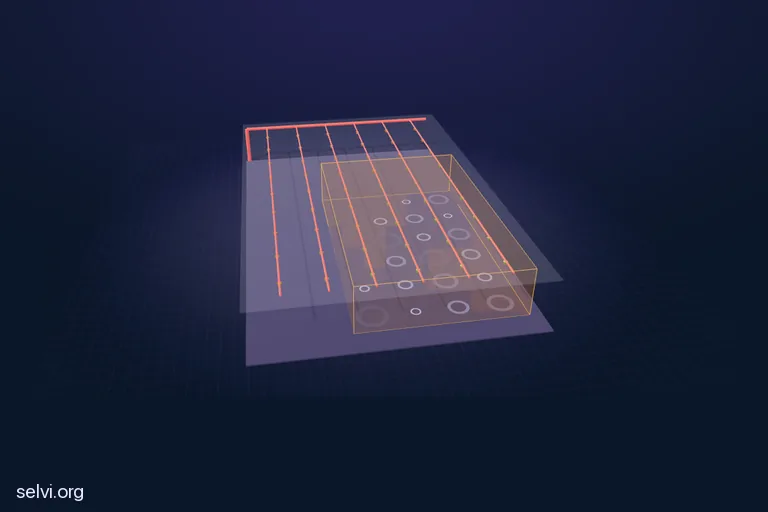

The design area is placed in the hydraulically most disadvantaged corner of the pipe geometry, and the calculation starts from the most remote and highest sprinkler in that area. This starting node represents the hardest point in the system because it sees the greatest friction and static head. In some geometries the most distant point and the highest point differ, and both should be checked.
Step 4 — Flow from the K-Factor
The minimum required flow at the most remote sprinkler is the design density multiplied by the sprinkler coverage area:
Qmin = density × coverage area = 8.15 mm/min × 11.25 m² = 91.7 L/min
The head pressure needed for the sprinkler to deliver that flow follows from the inverted orifice equation. For a metric K = 80 sprinkler:
P = (Q / K)² = (91.7 / 80)² ≈ 1.31 bar
So the most remote sprinkler delivers 91.7 L/min at 1.31 bar. Note that metric K is approximately imperial K multiplied by 14.4, so K=80 corresponds to about imperial K=5.6.
Step 5 — Friction Loss with Hazen-Williams
The pressure loss in each pipe section is calculated with the Hazen-Williams equation. In its metric form (bar/m, Q in L/min, d in mm):
p = 6.05 × 105 × Q1.85 / (C1.85 × d4.87)
Here C is the pipe roughness coefficient: new steel pipe C = 120, cast iron C = 100, copper and CPVC C = 150. Worked example: for 91.7 L/min in a 27 mm internal diameter (DN25) steel pipe, the unit loss is approximately 0.065 bar/m.
This is multiplied by the pipe length to give the total friction loss for that section. As more sprinklers are fed, the flow accumulates and so does the loss, which is why the calculation proceeds node by node.
Step 6 — Elevation and Fitting Losses
Elevation (static) head: add 0.0981 bar for every metre of height difference. For a riser climbing 4 m from the supply main to ceiling level: 4 × 0.0981 = 0.39 bar.
Fitting losses: elbows, tees, check valves and control valves are accounted for by the equivalent pipe length method. For example a 50 mm 90-degree elbow corresponds to roughly 1.5 m and a check valve to roughly 6 m of equivalent length. These are added to the actual pipe length and the Hazen-Williams loss is calculated over the total.
Step 7 — Find the Total Demand Point
Starting from the most remote sprinkler, adding each new sprinkler flow at every node and accumulating friction, elevation and fitting losses in each section, you arrive at the system inlet. The resulting pair is the total demand point. In the worked example, for a 12-sprinkler OH2 design area:
- Total sprinkler flow: approximately 1,200 L/min
- Demand pressure at the riser inlet: approximately 4.8 bar
Note that while the most remote sprinkler flows at its minimum pressure of 1.31 bar, sprinklers closer to the source see higher pressure and therefore discharge more, so the average sprinkler flow exceeds the minimum.
Step 8 — Verify the Water Supply and Pump
Finally the demand point (1,200 L/min at 4.8 bar) is plotted on the same graph as the pressure-flow curve of the water supply or fire pump. If the demand point falls below the supply curve the system is adequate; if not, pipe diameters must be increased or a more capable pump selected. At this step:
- The hose stream allowance is added to the demand at the system inlet.
- Tank capacity is sized as sprinkler plus hose flow multiplied by the required duration.
- Pump selection is verified including performance at 150% of rated capacity.
Common Mistakes
- Mixing units: confusing metric (bar, L/min, mm) with imperial (psi, gpm, in) values. Choose one system at the outset.
- Wrong C coefficient: for dry and pre-action systems, C = 100 should be used rather than 120 because of corrosion.
- Omitting fittings: if equivalent lengths are left out, the demand pressure comes out lower than reality.
- Forgetting the hose stream: sizing the water supply on the sprinkler demand alone leaves it inadequate.
Frequently Asked Questions
What is a sprinkler hydraulic calculation and why is it done?
It is the calculation of flow and pressure at every point of the system so the sprinklers in the most demanding design area can deliver the required density. The purpose is to prove that pipe sizes, elevation differences and friction losses can all be satisfied by the water supply or pump even when the most disadvantaged group of sprinklers is operating. Unlike the older pipe schedule method it models real flow conditions node by node and optimises pipe sizes.
What does the sprinkler orifice equation mean?
It relates the flow from a sprinkler to its head pressure through the K-factor, the discharge coefficient of that sprinkler. A metric K=80 sprinkler delivers 80 L/min at 1.0 bar and about 91.6 L/min at 1.31 bar. The relationship is inverted to find the head pressure required for a given flow.
How are the design density and design area selected?
Both are read from standard tables according to hazard class - density/area curves in NFPA 13, and class-based tables in EN 12845. For Ordinary Hazard Group 2 a common combination is 8.15 mm/min over 139 square metres. Higher hazard classes require both a higher density and a larger area.
What C coefficient should be used in the Hazen-Williams formula?
The C coefficient represents internal pipe roughness. New black or galvanised steel pipe uses C=120, cast iron C=100, copper C=150 and CPVC C=150. For the steel pipework of dry and pre-action systems most standards recommend C=100 because of corrosion. A lower C produces higher calculated friction loss, so choosing it correctly is critical to the reliability of the calculation.
Is the most remote sprinkler the same as the most critical area?
Not exactly. The most remote sprinkler is the single most disadvantaged starting point inside the design area, whereas the most critical design area is the hydraulically hardest zone containing the group of sprinklers assumed to operate together. The calculation starts from the most remote sprinkler of that critical area. In some geometries the furthest point and the highest point differ, and both are checked.
How is an elevation difference converted into pressure?
The static pressure of a water column is density times gravity times height. In practice each metre of rise is about 0.0981 bar, and each foot about 0.433 psi. Where the sprinklers are at ceiling level and the supply riser is below, this static head is added to the calculation. In tall buildings it can form a substantial part of the total demand pressure.
How are fitting losses calculated?
Elbows, tees, check valves and control valves are accounted for using the equivalent length method. Standard tables give an equivalent length in metres for each fitting type and size - a 50 mm 90-degree elbow, for example, is roughly 1.5 m. These equivalent lengths are added to the actual pipe length and the total is used in the Hazen-Williams friction loss calculation.
What does the total demand point mean?
It is the required flow and pressure pair at the system reference point, usually the pump discharge or the control valve, shown as a single point on a graph. It is obtained by summing the flows of all sprinklers in the critical area together with all friction, elevation and fitting losses, plus the hose stream allowance. The demand point is compared against the water supply curve to assess adequacy.
What is the difference between hydraulic calculation and the pipe schedule method?
The pipe schedule method uses predetermined tables to state how many sprinklers a given pipe size may serve for a given hazard class - no calculation is performed. Hydraulic calculation models the actual flow and pressure in every pipe section and optimises sizes, usually achieving the same performance with smaller pipe. Modern projects and higher hazard classes require hydraulic calculation; pipe schedule is accepted only for small, low hazard systems.
How is the hose stream allowance added?
Internal and external hose demands are added to the sprinkler demand as an additional water requirement. NFPA 13 gives the value by hazard class - for Ordinary Hazard it is around 250 gpm (946 L/min). The hose flow is normally added to the total at the system inlet, and the water supply must be shown to provide adequate pressure with that additional flow. Tank capacity is likewise sized on sprinkler plus hose flow times duration.
