Shopping Mall Atrium Fire Protection — NFPA 92 Smoke Control and Sprinklers

Fire protection for a shopping mall atrium is genuinely complex: ceilings above 30 m, several storeys open to one another, hundreds of retail units, commercial kitchens and cinemas. NFPA 92 governs the smoke control layer that ties all of this together. This guide works through the design decisions that recur on mall projects.

What Counts as an Atrium (NFPA 92)

• A large-volume space connecting two or more storeys vertically
• Open floor-to-floor connection rather than compartmented floors
• Ceiling heights typically between 15 m and 40 m in shopping centres
• Open stairs, escalators and panoramic lifts are characteristic features

Smoke Control Strategy (NFPA 92)

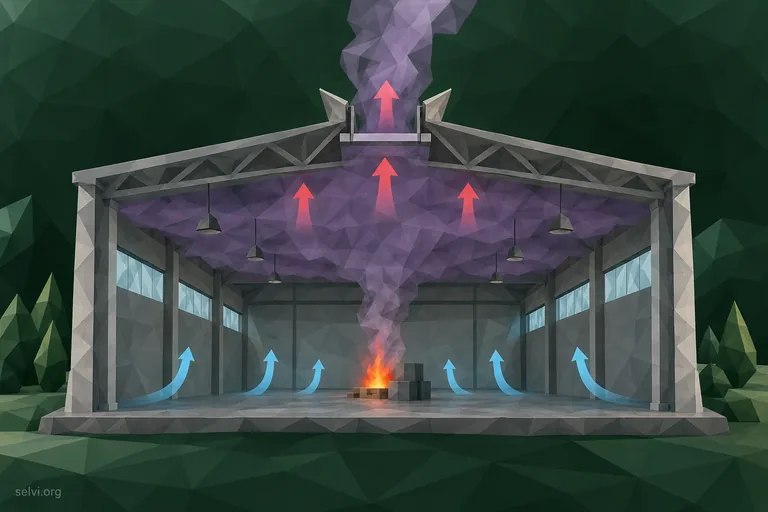

• Smoke filling: allow smoke to collect in the upper atrium volume while keeping occupied levels tenable
• Mechanical smoke exhaust: extract smoke from the top of the volume
• Combined with sprinklers: sprinkler operation and exhaust activation are coordinated
• Analysis tools: zone models and CFD (for example NIST CONTAM and Fire Dynamics Simulator) are used to justify the design
• Design fire: a defined heat release rate, commonly in the range of several megawatts for retail occupancies

Mechanical Exhaust System

• Exhaust capacity: derived from the design fire, smoke layer height and atrium geometry rather than a rule of thumb
• Fans: smoke-rated and certified for high-temperature operation for the required duration
• Dampers: smoke-rated, motorised and interlocked with the fire alarm system
• Ductwork: fire-rated enclosure where it passes through other compartments
• Standby power: generator support for the full design operating period; in Turkiye, BYKHY Article 85(5) requires the supply cables of smoke exhaust and pressurisation fans to be fire resistant for at least 60 minutes and the fans to be fed from the generator

Makeup Air — Balancing the Exhaust

When the exhaust starts, the atrium goes negative and air is drawn in from the lower levels — precisely where occupants are evacuating. Makeup air restores that balance in a controlled way.

• Openings: automatic dampers or louvres in the facade at low level
• Velocity limit: kept low across egress routes so it does not impede escaping occupants or disturb the smoke layer
• Location: introduced below the smoke layer, with exhaust taken from the top
• Dedicated system: not shared with the normal comfort HVAC system

Sprinklers — Atrium-Specific Rules (NFPA 13 section 9.3.5)

• High ceiling rules: above 9.1 m NFPA 13-2025 (19.2.3.2.5) adds requirements rather than prohibiting spray sprinklers: for OH2, at least 15.1 mm/min between 9.1 and 12.2 m, and above 12.2 m at least 18.3 mm/min with the design area increased by 30% (no increase with K25.2 extended-coverage sprinklers); sprinklers smaller than K11.2 (K160) are not permitted for OH2 and higher, and sidewall sprinklers are not permitted for OH1 and higher
• Quick response: heads with an RTI of 50 (m·s)^1/2 or less (NFPA 13 section 3.3.223.4.16) for faster operation at balcony and lower levels
• K-factor: K115 (K8.0) to K200 (K14.0) is common
• Ceiling obstruction rules: signage, banners and feature lighting must be assessed for obstruction
• Open stairs and escalators: NFPA 13 section 9.3.5 protects unenclosed floor openings with draft curtains at least 450 mm deep immediately adjacent to the opening and closely spaced sprinklers not more than 1.8 m apart, 150–300 mm from the curtain; under 9.3.5.4 this is not required where all levels are sprinklered and the opening is at least 6.1 m in every horizontal dimension and at least 93 m² in area. Sprinkler waterflow is interlocked with exhaust activation as part of the combined control matrix
• BYKHY Article 24(5): atrium openings smaller than 90 m² are surrounded on every floor by a smoke curtain at least 45 cm deep, and in sprinklered buildings heads are placed 15–30 cm from the curtain at not more than 2 m spacing

Zone Designs: Retail, Kitchen, Cinema

• Retail units: NFPA 13 Annex A.4.3.3.2 lists mercantile among Ordinary Hazard Group 2 examples: 8.1 mm/min over 140 m² (0.20 gpm/ft² over 1,500 ft², Table 19.2.3.1.1), subject to stored contents
• Commercial kitchens: NFPA 96 hood, wet chemical suppression and duct protection
• Cinemas: NFPA 101 assembly occupancy requirements for seating layout and egress capacity
• Multi-storey car park: Ordinary Hazard Group 2 (NFPA 13 Annex A.4.3.3.2), with foam-water considered where fuel spill risk exists; BYKHY Article 96(2)(c) mandates sprinklers in enclosed car parks larger than 600 m²
• Children's play areas: plastic content typically pushes these toward Ordinary Hazard Group 2

Hot Smoke Test — Commissioning

NFPA 92 requires the smoke control system to be tested as an integrated system, and a hot smoke test is the recognised method for atria:

• A controlled heat source with tracer smoke reproduces a scaled design fire
• Exhaust activation and makeup air behaviour are observed under real buoyancy conditions
• Thermocouple and detector data are logged throughout
• Measured performance is compared against the analytical model used in design
• The commissioning report is normally required by both the authority having jurisdiction and the insurer

Practice in Turkiye

• BYKHY does not reference NFPA 92; Article 24(5) requires natural or mechanical smoke control in atria
• BYKHY Article 96(2)(d) mandates sprinklers in multi-storey shops, shopping, trade and entertainment venues with a total area above 2,000 m²
• Large malls typically combine NFPA 92 with the national regulation; hot smoke tests have been carried out in some newer malls

Quick Checklist

• Atrium volume and design fire size established and documented
• Exhaust capacity calculated with a recognised model, not assumed
• Smoke-rated fans and dampers with generator backup for the design duration and 60-minute fire-resistant fan cabling
• Makeup air provided at low level with a controlled velocity limit
• Sprinkler approach appropriate to the actual ceiling height
• Draft curtains and closely spaced sprinklers at open stairs and escalators (NFPA 13 section 9.3.5)
• Zone-specific protection for retail (OH2), kitchen, cinema and car park (OH2)
• Commercial kitchens covered by NFPA 96 wet chemical and duct protection
• Integrated hot smoke test completed and reported before handover

Frequently Asked Questions

Why do standard sprinklers stop working effectively in a tall atrium?

Sprinkler operation depends on the hot gas plume reaching the head with enough temperature and velocity. In a tall atrium the plume entrains large volumes of cool air on the way up, so by the time it reaches a ceiling 20 or 30 m above the fire it may be too cool to operate the sprinkler promptly, and the water droplets may not penetrate the plume to reach the fire.

What is makeup air and why does it matter?

Makeup air is the controlled replacement air introduced at low level to balance the smoke exhaust. Without it the atrium goes strongly negative, air is pulled in through escape doors and stair enclosures, doors become hard to open and the smoke layer can be pulled downward. The velocity is deliberately kept low so it does not disturb the smoke layer or impede evacuating occupants.

Why is a hot smoke test required rather than just a fan performance test?

Measuring fan flow proves the equipment works; it does not prove the system controls smoke. A hot smoke test introduces real buoyancy, so it reveals whether the smoke layer actually stabilises at the design height, whether makeup air behaves as modelled, and whether the detection-to-exhaust control sequence operates correctly as an integrated system.

What design fire size is used for a shopping mall atrium?

The design fire is a heat release rate chosen to represent a credible worst-case fire for the occupancy, and it must be justified rather than assumed. Retail atria commonly use a design fire of several megawatts, with the exact value depending on the fuel present, the presence of sprinklers and whether combustible displays are permitted in the atrium floor area.

Do sprinklers and smoke exhaust work against each other?

They can if the design is not coordinated. Sprinkler sprays cool the smoke layer and reduce buoyancy, which can cause smoke logging and pull the layer down. This is exactly why the design fire, sprinkler strategy and exhaust rates are analysed together in the smoke control model rather than designed independently.

What is required for commercial kitchens inside a mall?

Commercial cooking operations need NFPA 96 protection independent of the mall sprinkler system: a listed hood, grease-rated ductwork, a wet chemical suppression system over the appliances, and interlocks that shut down fuel and the make-up air on activation. The kitchen exhaust must also be kept separate from the atrium smoke control system.

Does the Turkish fire regulation (BYKHY) reference NFPA 92 for mall atria?

No. BYKHY Article 24(5) requires natural or mechanical smoke control in atria and permits atria only in buildings whose uses fall in the low and ordinary hazard classes; Article 85(3) requires smoke control installations to be designed to the relevant regulations and standards, and Article 85(4) requires acceptance testing plus periodic inspection, testing and maintenance. There is no direct reference to NFPA 92, so a recognised calculation method and a commissioning test are adopted as accepted practice.
