High-Rise Sprinkler and Standpipe Design — NFPA 13, 14 and 20 Combined

Consider a 50-storey office tower. The top floor needs roughly 2 bar at the highest sprinkler, while the static pressure at the base of the riser approaches 22 bar. No single pump arrangement can serve both conditions. The answer is a zoned system: NFPA 14 Class III standpipes combined with booster pumps and pressure-reducing valves. This guide sets out the integrated design approach for high-rise fire protection.

What Counts as a High-Rise Building

• NFPA 101: a building where the highest occupiable floor is more than 23 m above the lowest level of fire department vehicle access
• Turkish fire regulation (BYKHY): a high-rise building has a building height above 21.50 m and a structure height above 30.50 m (Article 4)
• EN 12845 (clause 3.32): a high rise sprinkler system is one in which the highest sprinkler is more than 45 m above the lowest sprinkler or above the sprinkler pumps, whichever is the lower; Annex E then applies
• Practical driver: the reach limit of firefighting aerial appliances — above it, firefighting must be conducted from inside the building

Zoning — Managing Static Pressure

• Pressure limit: NFPA 14-2024 Section 10.2.1 caps the pressure at any point in a standpipe system at 400 psi (28 bar), which is what forces vertical zoning; where the static pressure at a 65 mm hose connection exceeds 175 psi (12 bar), a listed pressure-regulating device is required (10.2.4.2)
• EN 12845 Annex E.2.2: the height difference between the highest and lowest sprinkler on any one installation must not exceed 45 m; Annex E.2.1 requires high rise systems to conform to OH3 (5.0 mm/min over 216 m²)
• Typical zone height: around 12 to 15 storeys per zone
• Booster pumps: a pump set at the base of each upper zone
• Zone pressure-reducing valves: used to bring hose valve and sprinkler pressures back within limits on lower floors of a zone; BYKHY Article 96(10) requires a pressure gauge upstream and downstream of every PRV
• Example split for 50 storeys: four vertical zones of roughly equal height

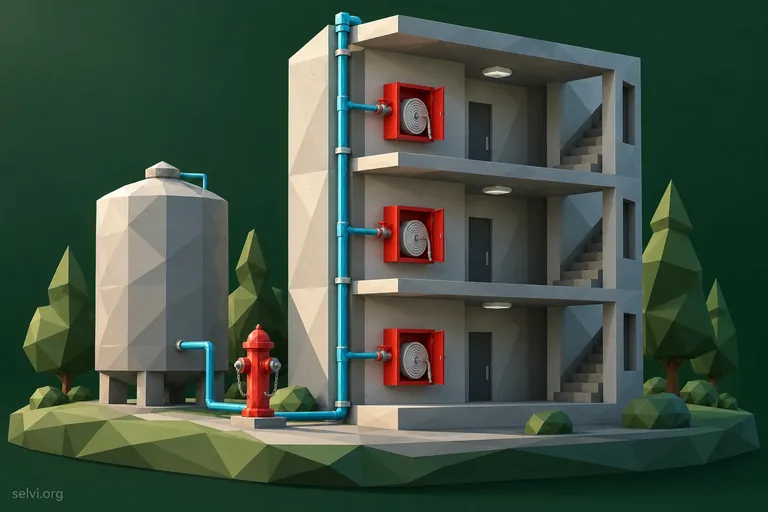

Standpipe Classes (NFPA 14)

• Class I: 65 mm connections for fire department use — the baseline requirement in high-rise buildings
• Class II: 38 mm hose stations intended for trained building occupants
• Class III: combines Class I and Class II — the most common high-rise selection
• Wet, dry or manual: wet systems are permanently charged; dry and manual systems depend on fire department pumping and are only permitted in defined circumstances
• Location: under BYKHY Article 94(1)(a)(1), in high-rise buildings and in malls, car parks and similar premises (including factories/workshops and warehouses) with a floor area above 1,000 m² the outlets must be in protected spaces such as escape stairs or fire lobbies; connections are Storz type, 50 or 65 mm (Article 94(1)(a)(3))

Sprinkler Design Notes

• Hazard classification: Light Hazard for offices and hotel rooms; retail areas are Ordinary Hazard Group 2 per NFPA 13 Annex A.4.3.3.2
• Design density and area (NFPA 13 Table 19.2.3.1.1): Light Hazard 4.1 mm/min over 140 m²; OH2 8.1 mm/min over 140 m²
• Sprinkler type: quick response heads in most light hazard applications
• Zone isolation: a check valve and control valve assembly per zone so a fault in one zone does not disable the others; BYKHY Article 96(7) requires a flow switch, test and drain valve and supervised stop valve on each zone or riser where the main supply serves more than one zone
• Pressure at the head: both minimum and maximum pressures must be respected, which is what drives the PRV schedule

Fire Pumps (NFPA 20)

• Main pump and jockey pump: jockey maintains system pressure so the main pump does not cycle on minor leakage
• Booster pumps: serving each upper zone, arranged in series or parallel depending on the hydraulic strategy
• Driver redundancy: NFPA 20-2025 Sections 5.5 and 9.3 require, for electric motor-driven fire pumps in high-rise buildings, a reliable alternate source of power (on-site generator per Section 9.6) or a back-up fire pump (e.g. diesel engine-driven)
• Pump room: located at low level in its own fire-rated compartment with independent access
• Standby power: generator capacity sized for the full pump duty and duration

Fire Department Connections (FDC)

• Per zone: NFPA 14-2024 Section 10.7 requires fire department connections for each zone, except zones partially or wholly beyond the fire department pumping capability (10.7.1.1); in high-rise buildings at least two FDCs per zone (10.7.2.2), located on opposite corners of the building where possible
• BYKHY Article 97: in high-rise buildings, a fire brigade inlet of at least 100 mm nominal size with two 65 mm Storz couplings and a check valve, with automatic draining of the pipe between the check valve and the inlet; fire appliances must be able to reach it within 18 m
• Position: outside the building, clearly visible and accessible, 0.45–1.2 m above the adjoining ground (NFPA 14-2024 Section 9.9.6)
• Identification: permanently marked with the zone served and the required inlet pressure
• Check valve: fitted downstream of each connection to prevent reverse flow

Practice in Turkiye

In the Turkish fire regulation (BYKHY) the sprinkler mandate is tied to structure height (Article 96(2): above 30.50 m for non-residential buildings, above 51.50 m for residential), while high-rise buildings must have fire brigade outlets on a fixed pipe system (Article 94(1)(a)) and a fire brigade inlet (Article 97). Sprinkler design follows TS EN 12845 (Article 96(5)), so Annex E of TS EN 12845 also applies where the sprinkler height difference exceeds 45 m; BYKHY does not reference NFPA 13 or NFPA 14. On tall towers in Istanbul, Ankara and Izmir the recurring design pattern is:

• Multiple vertical zones with booster pump sets, driven by the static pressure limit
• Class III standpipes located within protected stair enclosures
• Pressure-reducing valves scheduled floor by floor rather than selected generically
• Where the building sits in an international insurer's portfolio, FM Global datasheets are applied in parallel with NFPA

Quick Checklist

• High-rise threshold confirmed against both NFPA 101 and national regulation
• Vertical zoning set by the maximum permitted static pressure; not more than 45 m height difference per installation under EN 12845 Annex E
• Class III standpipe combined with full sprinkler coverage
• Booster pump set at the base of each upper zone
• PRV schedule prepared floor by floor, with both minimum and maximum pressures checked and gauges either side of each PRV
• Fire department connections provided and marked for every zone (BYKHY Article 97: at least 100 mm, 2 × 65 mm Storz)
• Main pump, jockey pump and driver redundancy per NFPA 20
• Pump room at low level in a dedicated fire compartment

Frequently Asked Questions

Why must a high-rise fire protection system be split into vertical zones?

Water pressure increases by roughly 1 bar for every 10 m of height, so in a 200 m tower the static pressure at the base of a single riser would far exceed what standpipe components, hoses and sprinkler heads are rated for. NFPA 14 caps the maximum static pressure, and NFPA 13 section 7.1.2 requires components to be rated for the maximum working pressure they see (not less than 175 psi / 12 bar), which forces the riser to be divided into vertical zones each served by its own pump and valve arrangement. Under EN 12845 Annex E.2.2 each installation is limited to a 45 m height difference between its highest and lowest sprinkler.

What is the difference between Class I, II and III standpipes?

Class I provides 65 mm connections for fire department use. Class II provides 38 mm hose stations intended for trained building occupants. Class III combines both, which is why it is the usual selection for high-rise buildings where the fire service needs large connections and the building may also have trained staff response.

Why are pressure-reducing valves needed if pumps already control pressure?

Pumps set the pressure at the base of a zone, but within that zone the lower floors still see significantly higher pressure than the top floors due to static head. PRVs bring the pressure at each hose valve and sprinkler connection back within the permitted maximum, so they are scheduled floor by floor rather than selected as a single generic device.

Can the fire department connection replace the fire pump?

No. The fire department connection is a supplementary supply that allows fire service pumping appliances to boost the system; it does not replace the building's own pump. In a tall building the fire service cannot generate enough pressure from ground level to serve upper zones, which is exactly why each zone needs its own booster arrangement and its own marked connection.

Why is the pump room placed at the lowest level in its own compartment?

Placing pumps low keeps them under positive suction from the storage tank, which is essential for reliable starting. Locating them in a dedicated fire-rated compartment with independent access means a fire elsewhere in the building cannot disable the water supply, and the fire service can reach the pumps during an incident.

What happens if a jockey pump is omitted or undersized?

The main fire pump will start on every minor pressure drop caused by small leaks or thermal expansion. Frequent starting causes unnecessary wear, nuisance alarms and, over time, reduced reliability of the pump you actually depend on. The jockey pump exists specifically to absorb that normal system leakage and keep the main pump in standby.
