Logistics Warehouse Fire Protection — ESFR, EN 12845 and FM Global Combined

Consider a large e-commerce distribution centre: 80,000 m², 11 m storage height and genuinely mixed commodity — timber furniture alongside cartoned plastic electronics and textiles. NFPA 13 produces one design, EN 12845-2 a second and FM Global DS 8-9 a third. When the insurer makes FM compliance a condition of cover, the scheme typically moves to ESFR with a high K-factor. This guide brings the three standards together into practical decisions for logistics warehouse fire protection; every figure below is referenced to its clause or table.

First Step — Commodity Classification (FM DS 8-1 + NFPA 13)

Class	FM DS 8-1 (interim revision October 2025)	NFPA 13-2025
1 / I	Noncombustible materials on wood pallets or in single-layer corrugated cartons (2.2.2)	Noncombustible product on wood pallets, in single-layer corrugated cartons, or shrink- or paper-wrapped (20.4.1)
2 / II	Class 1 materials in multiple-thickness corrugated cartons, wooden crates or equivalent combustible packaging (2.2.3)	Noncombustible product in slatted wooden crates, solid wood boxes or multiple-layer corrugated cartons (20.4.2)
3 / III	Cellulosic materials such as wood, paper and natural textiles; no more than 5% plastic by weight or volume (2.2.4)	Wood, paper, natural fibres or Group C plastics; up to 5% nonexpanded (by weight) or expanded (by volume) Group A plastic (20.4.3)
4 / IV	No separate Class 4: "Class 4/Unexpanded Plastic (UP)" is a single category; more than 5% unexpanded plastic, or 5–40% expanded plastic by volume (2.2.5)	Cartoned: more than 5% and up to 15% nonexpanded Group A plastic by weight, or more than 5% and up to 25% expanded by volume; products made of Group B plastics (20.4.4)
Plastics	Expanded plastic (EP): more than 40% foam plastic by volume (2.2.6)	Group A plastics: cartoned, more than 15% nonexpanded by weight (20.4.5.4) or more than 40% expanded by volume (20.4.5.3)

A product with up to 5% plastic is Class 3 / III under both documents, so "Class 4 = Class 3 plus a small amount of plastic" is not a valid shortcut. Much modern e-commerce stock contains plastics, so the class must be established from the plastic content of each pallet load. See FM DS 8-1 commodity classification for detail.

Storage and Ceiling Height — The Governing Parameters

Situation	Rule and source
Storage up to 3.7 m	NFPA 13: miscellaneous storage (4.3.1.4, with additional area limits) and low-piled storage (4.3.1.5; Group A plastics at most 1.5 m); ceiling-only protection is selected from Table 4.3.1.7.1 for miscellaneous storage and Table 4.3.1.7.4 for low-piled storage, and these tables in some cases call for in-rack sprinklers (4.3.1.7.2, 4.3.1.7.5)
Storage above 3.7 m	NFPA 13 Chapters 20–25 storage criteria
ESFR, ceiling-only	NFPA 13 Table 23.3.1: maximum 13.7 m ceiling / 12.2 m storage (Class I–IV and cartoned nonexpanded Group A plastics with K22.4 and K25.2 at 2.8 bar). EN 12845-2 Table 7: same limit for HHS1–3 with K320/K360; up to 16.8 m ceiling / 14.9 m storage with K400/K480
CMSA, ceiling-only	NFPA 13: maximum 12.2 m ceiling (Tables 22.2–22.5). EN 12845-2 Table 15: HHS1/HHS2 up to 10.7 m storage / 12.2 m ceiling
Ceiling above 13.7 m (NFPA)	No ceiling-only ESFR or CMSA option: in-rack sprinklers (Chapter 25) or Chapter 24 Table 24.3.3 (dry pipe, standard-response K25.2/K33.6 upright sprinklers, Class I–III)

ESFR vs CMSA — Which One?

Criterion	ESFR	CMSA
Objective	Suppression	Control
K-factor range	NFPA Table 23.3.1: K14–K25.2 (K200–K360); EN 12845-2 Table 7: K200–K480	NFPA Chapter 22: K11.2–K25.2 (K160–K360); EN 12845-2 Tables 15–21: K160–K480
Minimum operating pressure	NFPA Table 23.3.1: 1.0–5.2 bar; EN 12845-2 Table 7: 1.0–5.5 bar	Read from the tables; example: 12.2 m ceiling, K25.2 (K360) pendent, wet pipe: 15 sprinklers at 1.6 bar (NFPA Table 22.4; EN 12845-2 Table 15)
Design sprinkler count	12, four on each of three branch lines (NFPA 23.2.2; EN 12845-2 Table 7)	NFPA Chapter 22: typically 15 for wet pipe, 25–36 for dry pipe; EN 12845-2 Table 6: 9–30
Water supply duration	60 min for 12 sprinklers (NFPA Table 20.15.2.6; EN 12845-2 Table 6)	60 to 150 min as the sprinkler count rises (NFPA Table 20.15.2.6); EN 12845-2 Table 6: 60–120 min
Ceiling slope	NFPA 14.2.3: max 4 in 12 (33.3%); EN 12845-2 5.2.1: max 10° (17.6%)	NFPA 13.2.1.2: max 4 in 12; EN 12845-2 5.2.1: max 10°
System type	Wet pipe; dry or preaction only where specifically listed for that use (NFPA 14.2.2). EN 12845-2 has no dry option (6.5)	Wet or dry pipe (NFPA Table 22.4; EN 12845-2 Table 15)
In-rack sprinklers	Not needed within the table limits; required for solid-shelf racks (NFPA 23.1.3.1); ESFR not permitted over open-top containers (23.1.3.2)	Not needed within the table limits; some K-factor and system-type combinations require in-rack sprinklers (NFPA Table 22.4)
Maintenance	Simpler (no in-rack pipework)	Harder where in-rack pipework is used

Most new logistics warehouses favour ESFR: a cleaner ceiling design, easier maintenance and, frequently, a better insurance position. On the other hand ESFR is sensitive to ceiling slope, obstructions and the height limits of the tables. For a detailed comparison see ESFR vs CMSA sprinklers.

Water Supply and Tank Capacity — Worked Example

Assumptions: 13.7 m ceiling, storage up to 12.2 m, Class I–IV or cartoned nonexpanded Group A plastics, K25.2 (K360) pendent ESFR.

• Minimum operating pressure: 2.8 bar (NFPA Table 23.3.1; the same in EN 12845-2 Table 7)
• Flow per sprinkler: Q = K·√P = 360 × √2.8 ≈ 602 L/min
• 12 sprinklers: 12 × 602 ≈ 7,229 L/min (hydraulic imbalance makes the actual demand somewhat higher)
• NFPA 13: 7,229 L/min × 60 min ≈ 434 m³ + hose stream allowance 950 L/min × 60 min = 57 m³ → at least ≈ 491 m³ (Table 20.15.2.6)
• EN 12845-2: 7,229 L/min × 60 min ≈ 434 m³ (Table 6); no hose allowance is added to the sprinkler demand
• Water supply: an on-site tank with duty and standby fire pumps is the norm
• FM Global DS 3-2 (2.2.6): the need to protect tanks and tank piping against freezing is based on regional minimum temperature data; heating is usually needed in inland Turkish climates

Flue Space — The Most Common Site Violation

Standard	Transverse flue	Longitudinal flue
NFPA 13 (20.6.2)	Nominal 150 mm (20.6.2.2)	Double-row racks: not required up to 7.6 m storage; nominal 150 mm above 7.6 m (20.6.2.1.1–20.6.2.1.2)
FM DS 8-9 (2.2.3.2.3.2, double-row racks)	Minimum 75 mm net at up to 1.4 m intervals, or minimum 150 mm net at up to 2.7 m intervals	Minimum 75 mm net
EN 12845 (12.5.1, racks with intermediate sprinklers)	At least 0.1 m	At least 0.15 m

• Typical violation: cartons overhang the rack edge and close the flue, so sprinkler water cannot penetrate down into the storage array
• Insurance surveys: flue obstruction is one of the most frequently raised recommendations at annual survey
• Practical fix: operator training, painted rack limit markings and routine spot checks; where loading becomes haphazard, physical means to keep the flues open (FM DS 8-9 2.2.3.2.1.7)

Practical Notes for Turkish Projects

• Large e-commerce and grocery distribution centres commonly design to ESFR with high K-factor sprinklers
• Automated storage and retrieval (ASRS) installations bring FM Global DS 8-34 into play alongside NFPA 13
• International logistics operators generally impose FM compliance through their own group standards
• Where FM is not required, BS EN 12845-2 and the Turkish fire regulation (BYKHY) set the baseline

Quick Checklist

• Commodity class correctly assigned, including plastics content (FM DS 8-1 2.2; NFPA 13 20.4)
• Storage height based on actual use plus a realistic future projection (FM DS 8-9 2.3.1.1)
• ESFR vs CMSA decision made together with ceiling height, ceiling slope, the insurer and the budget owner
• Tank capacity = (sprinkler demand + hose stream allowance under NFPA) × duration
• Flue spaces maintained to the rack type and the applicable standard

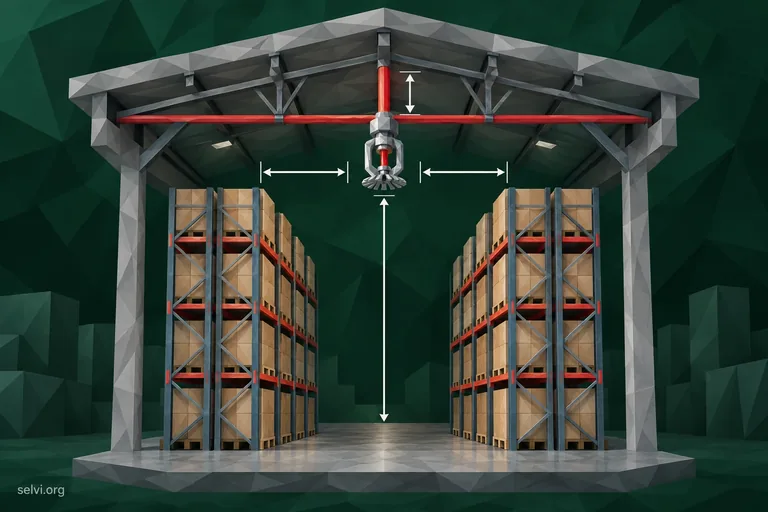

• Clearance to ceiling-level sprinklers: NFPA at least 900 mm (14.2.11, 13.2.8), FM DS 8-9 at least 0.9 m (2.2.6.1), EN 12845-2 at least 1 m (5.1.3.7)
• FM DS 8-1 / DS 8-9, EN 12845-2 and NFPA 13 reviewed in parallel
• Insurer requirements clarified at the very start of design, not at handover

Frequently Asked Questions

What is the difference between ESFR and CMSA sprinklers?

ESFR (Early Suppression Fast Response) aims to suppress the fire outright with a small number of high-flow sprinklers operating quickly; the design is based on 12 sprinklers and, within the table limits, is ceiling-only. CMSA (Control Mode Specific Application) aims to control the fire rather than extinguish it; the design sprinkler count is typically 15 or more, and NFPA 13 ceiling-only CMSA options extend to a maximum ceiling height of 12.2 m. For both, the ceiling slope is limited to 4 in 12 by NFPA 13 (14.2.3 and 13.2.1.2) and to 10° by EN 12845-2 (5.2.1).

Why is flue space so important in rack storage?

Flue spaces are the vertical channels that let sprinkler water travel down into the storage array and let hot gases rise to operate the ceiling sprinklers. If cartons overhang and block the flues, water is deflected across the top of the load and never reaches the seat of the fire, so a fully compliant sprinkler system can still fail in practice. NFPA 13 requires nominal 150 mm transverse flue spaces (20.6.2.2).

Does ESFR always remove the need for in-rack sprinklers?

No. ESFR is a ceiling-only solution within defined limits of storage height, ceiling height, commodity class and rack configuration. The highest row of NFPA 13 Table 23.3.1 is 13.7 m ceiling / 12.2 m storage; for exposed nonexpanded Group A plastics there is no ceiling-only option at that height and in-rack sprinklers are required. Solid-shelf racks also require in-rack sprinklers (23.1.3.1).

Why do insurers ask for FM Global compliance when the local code is satisfied?

National fire regulation sets a life safety baseline, whereas FM Global data sheets are written around property loss prevention and business interruption. An insurer carrying the property risk therefore applies its own, generally more demanding, criteria. Compliance is contractual rather than legal, but it directly affects premium and cover.

How is warehouse fire water tank capacity determined?

Under NFPA 13, capacity is the sprinkler design demand plus the hose stream allowance, multiplied by the required duration (Table 20.15.2.6; for 12 ESFR sprinklers, 950 L/min hose allowance and 60 minutes). Under EN 12845-2 no hose allowance is added to the sprinkler demand and the duration comes from Table 6 (60 minutes for 12 sprinklers). Because the sprinkler demand follows from the number of design sprinklers and their minimum operating pressure, the storage arrangement drives the tank size much more than the building floor area does.

What happens if storage height increases after the system is installed?

The design becomes invalid. Storage height is the single most influential parameter in warehouse sprinkler design, so raising the stack, adding a rack level or changing to a more hazardous commodity can push the installation outside the table row it was designed to, and the hydraulic design has to be reassessed. FM DS 8-9 therefore recommends considering future commodity and storage changes when protection is selected (Section 1 and 2.3.1.1); it does not specify a number of years.
